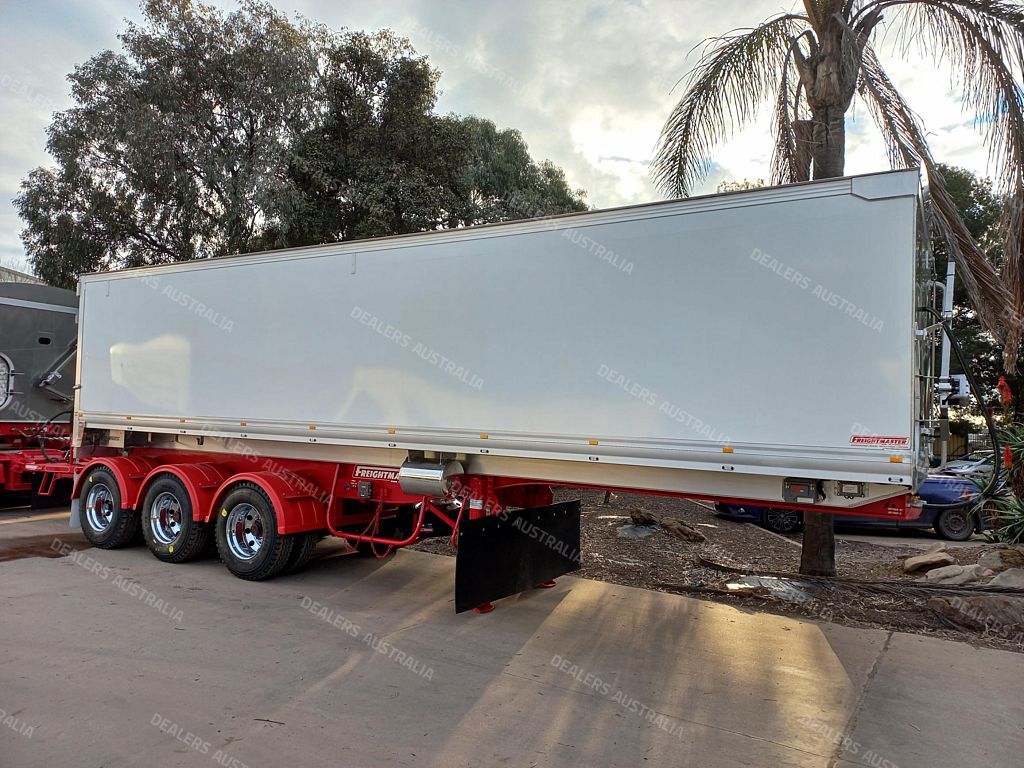

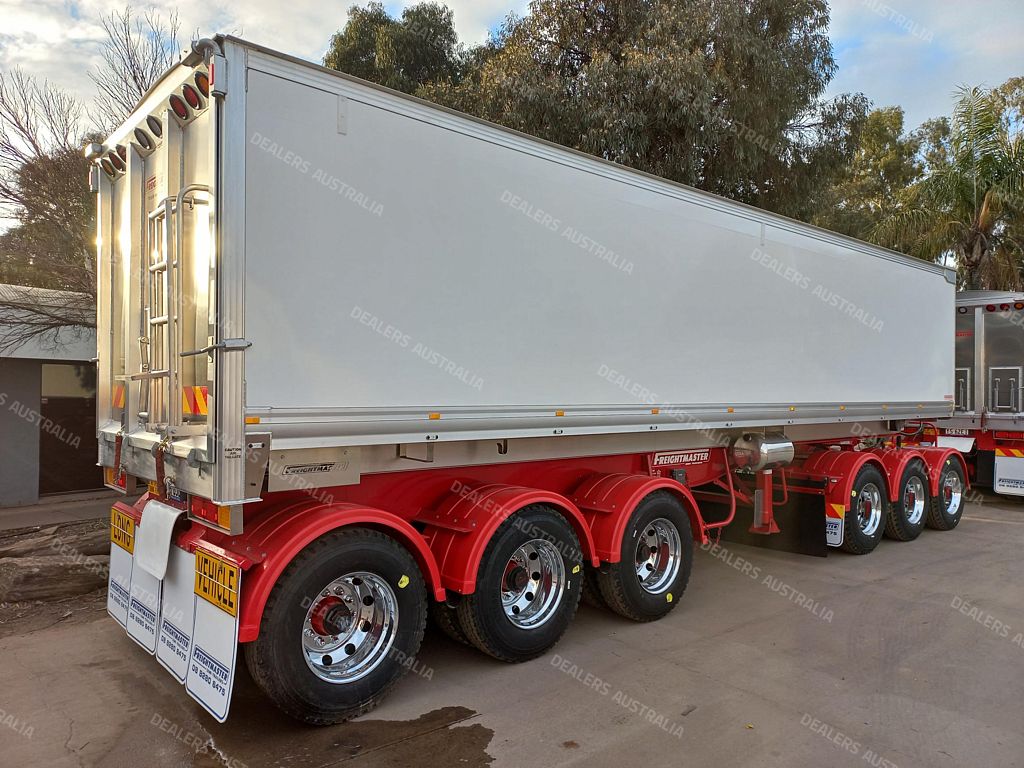

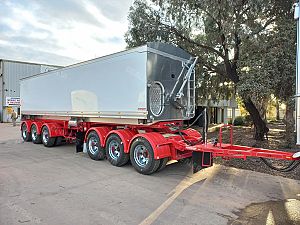

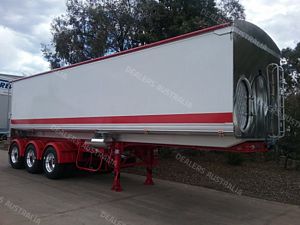

33' x 6'7" Tri Axle Air Bag Aluminium Tipper Road Train Lead for sale

Axles: YORK 5” Round Road Baron Axles – Enclosed ‘S’ Cams – 10 Stud Hubs – Grease Filled 285pcd

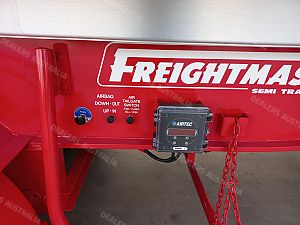

Suspension: YORK 9’1” Spread Duratrac Air Bag Suspension with Rightweigh Weight Gauge & Dump Valve

Braking System: Air Brake Corp EBS Brake Kit – Push/Pull Coupling – with Yard Release Button Air Lines in Front & Behind King Pin

Main Beam: 100 x 16mm Top Flange
100 x 20mm Bottom Flange
5mm Webb

Body: 5mm Sides – Aluminium – Nil Rope Rail
6mm Floor – Aluminium – PVC Guards over Tri Group

Skid Plate: 10mm thick with 50mm Road Train Rated bolt in King Pin set @ 720 / 1020 / 1370 from front of Trailer

Tyre Carrier: Dual bolt on to underside of Trailer

Hoist: 5 Stage 50 tonne JOST Hoist

Toolbox: One (1) Steel Lockable

Watertank: One (1) 60 Litre Alloy

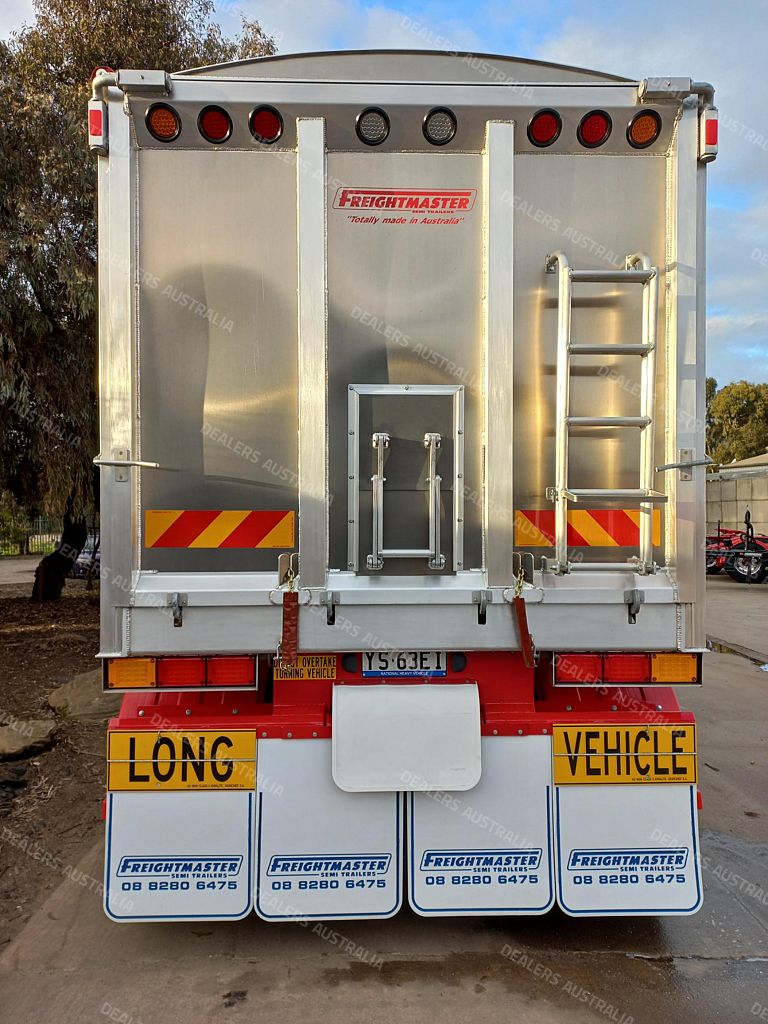

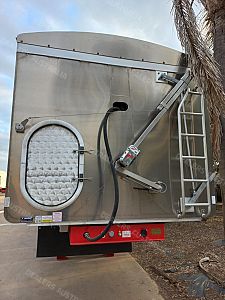

Tailgate: One-Way Tailgate – Air Opening switch on Rear Post, Safety Locks & Spreader Chains, Aluminium Grain Door & Chute, Grain Seal

Lights: All HELLA L.E.D. Lights
L.E.D. Clearance Lights on Tub
2 x L.E.D. Jumbo Lights at Rear + Top of Tail Gate
2 x L.E.D. Number Plate Lights
2 x Work Lights at Top of Tailgate with Switch on Rear Post
6mm Wiring

Legs: JOST Two Speed Legs with Pad Feet

Tyres: 11R Rimex Tubeless Tyres on 13 x 10-Stud Rimex Aluminium Machine Finished Tubeless 285pcd

Roll Tarp: ATS Tarp PVC Roll Top Tarp with 3 RHS X-Bows , Alloy Pelmets, Ground Operated Swing Away Ridge Pole

Ringfeder: Ringfeder Bracket inc Air, Electrical & 50mm Ringfeder Coupling. Manual Diverter Valve with Hydraulic Hose to Rear

Paint: Painted to the colour of your choice in 2-Pak – Subframe only: Chassis: Red, Body: Red / White Wrap, Tarp: Red

Sundries: Hydraulic Hose to front with 1” Tema Coupling
Front board ladder with steps on hoist well
PVC Guards over Tri-Group
Fold Down Aluminium Ladder on Rear Tail Gate
Access Door in Front Wall
Aluminium Scraper with storage on legs
Fold Down Road Train & Long Vehicle Signs
