Description
Dimensions and weights
Internal size (LxWxH) 199x115x34 cm
Total size (LxWxH) 303x160x85 cm
Loading height 51 cm
Total weight: 750 kg
Payload: 634kg
Tare: 116kg

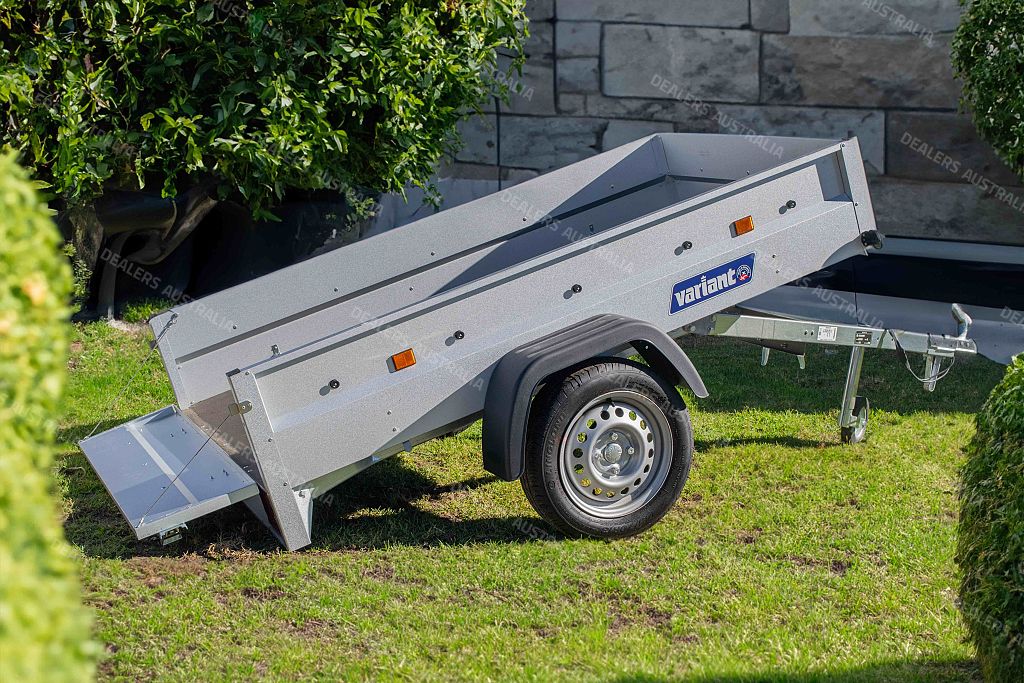

Tip Angle 20 degrees
Body
Wheel 2 PCs, 13″
Axles 1 piece, without brake
Page – Material Steel
Bottom Veneer, 9 mm
Standard Equipment
13 or 7 Pin Plug Yes
Tarpaulin knots 16 PCs.
Interior Lashing Hooks 4 pcs.

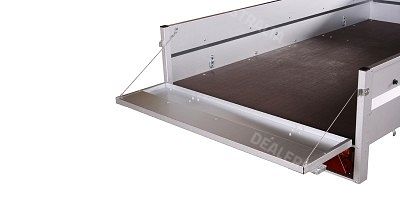

Opening/detachable pages Yes, the Tailgate
Optional equipment (price incl. GST)

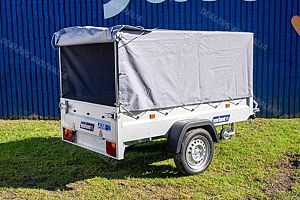

Flat Tarpaulin and Jockey wheel Yes
Flat Tarpaulin Yes
Jockey Wheel, Narrow – incl. Seized Yes
Extra steel sides waited., 30 cm Yes
High-pressure framing inside. 105 cm Yes
Mesh Grill, 50 cm Yes
Sheet and aluminum edge, 10 cm Yes
Hardtop, 45 cm Yes
Aluminum Bottom No
LED Road lights incl. Control box no
Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that's why we develop the very strongest and sturdiest trailers you will find imported from Europe.
New E4 rated Tubeless radials on all wheels.
Using either Knott/Al-ko rubber torsion suspension system or axle leaf spring systems for greater road stability.
With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
Bright White safety reversal light.
Whether It's a 2000kg, 2700kg or 3500kg knott/Al-ko, all couplings have a lockable position for greater security.
Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
TUV load securing system with lashing brackets integrated into the side edges.
Removable corner posts.
Unique Easy Attachment panel hinges.
Heavy profiled aluminum Front, rear and side panels with integrated fasteners.
When Choosing your trailer, you will see that our tare weights are lower meaning greater payloads and overall reduced fuel consumption.
Our trailers are designed to get the job done in the right situation.
We deliver to businesses, government and private individuals, who want to work with the strongest trailers.
Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.
We have developed the strongest and most robust trailers in Europe.
Always with the user in mind; demanding companies and private individuals. We do not settle for average quality, we strive for perfection. Our trailers are designed to get the job done. Whatever the challenge may be, we will meet it.
